SGS Pakistan has recently taken a proactive step towards enhancing the inspection process for Barrage Structures by employing the state-of-the-art 3D Ultrasonic Tomography, a sophisticated Civil Non-Destructive Testing (NDT) technique.
Our I&E Civil Services team in Pakistan is meticulously scanning the internal concrete quality of these structures using this groundbreaking technology, which offers engineers the unprecedented ability to delve deep into the concrete members, revealing intricate details such as voids, air pockets, and cracks through immersive 3D imaging.
Introduction to 3D Ultrasonic Tomography

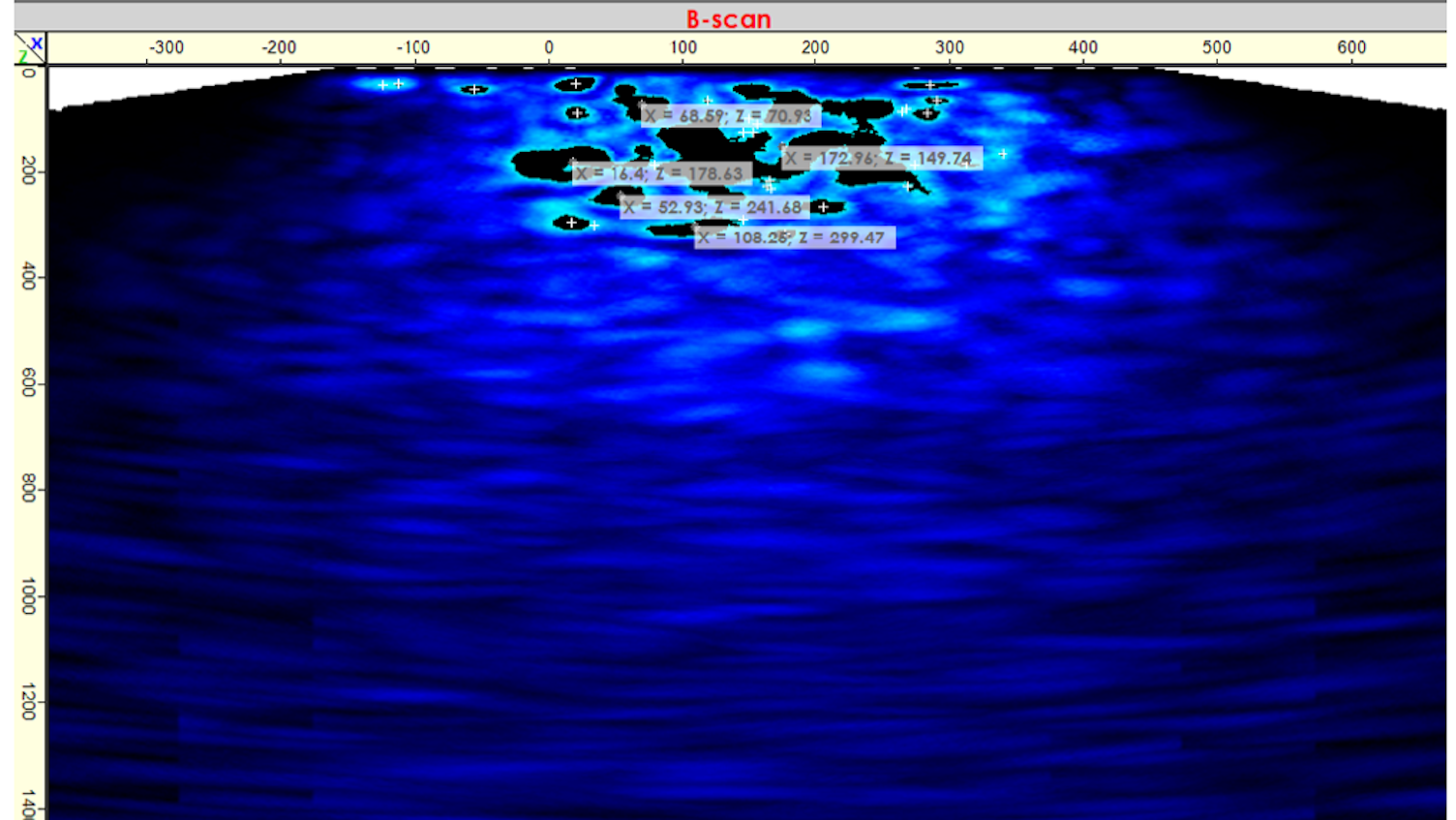

3D Ultrasonic Tomography is an advanced testing method employed to scan the interiors of concrete structures for the presence of cavities, damages, or cracks. By utilizing ultrasonic technology, it generates three-dimensional tomographic images, allowing for detailed visualization and analysis of internal structural conditions.
Applications
Detection of Material Voids: The technique allows for the detection of material voids, estimating their position and size in 3D, including cavities, inclusions, honeycombs, and cracks.
Localization of Reinforcement Rebars and Other Elements: It can accurately localize reinforcement rebars and other elements such as tendon ducts, anchors, hollow pipes, cables, even beyond rebar layers.
Detection of Grouting Defects: It can identify grouting defects in tendon ducts and grouting couplers, providing insights into the integrity of the structure.
Benefits and Insights
The profound insights gleaned from these scans are invaluable, enabling engineers to comprehensively assess the existing strength of the structure and the overall quality of the concrete. Armed with this detailed understanding, tailored strategies for structural repair and maintenance can be meticulously engineered, ensuring optimal performance and longevity of the infrastructure.
Conclusion
By leveraging cutting-edge technologies like 3D ultrasonic tomography, SGS Pakistan reaffirms its commitment to delivering innovative solutions that empower engineers to make informed decisions, ultimately contributing to the safety, efficiency, and resilience of infrastructure projects worldwide. This groundbreaking initiative marks a significant milestone in the field of Civil NDT in Pakistan, setting a new standard for inspection practices in the country's construction industry.
About SGS
We are SGS – the world’s leading testing, inspection and certification company. We are recognized as the global benchmark for sustainability, quality and integrity. Our 99,600 employees operate a network of 2,600 offices and laboratories around the world.
