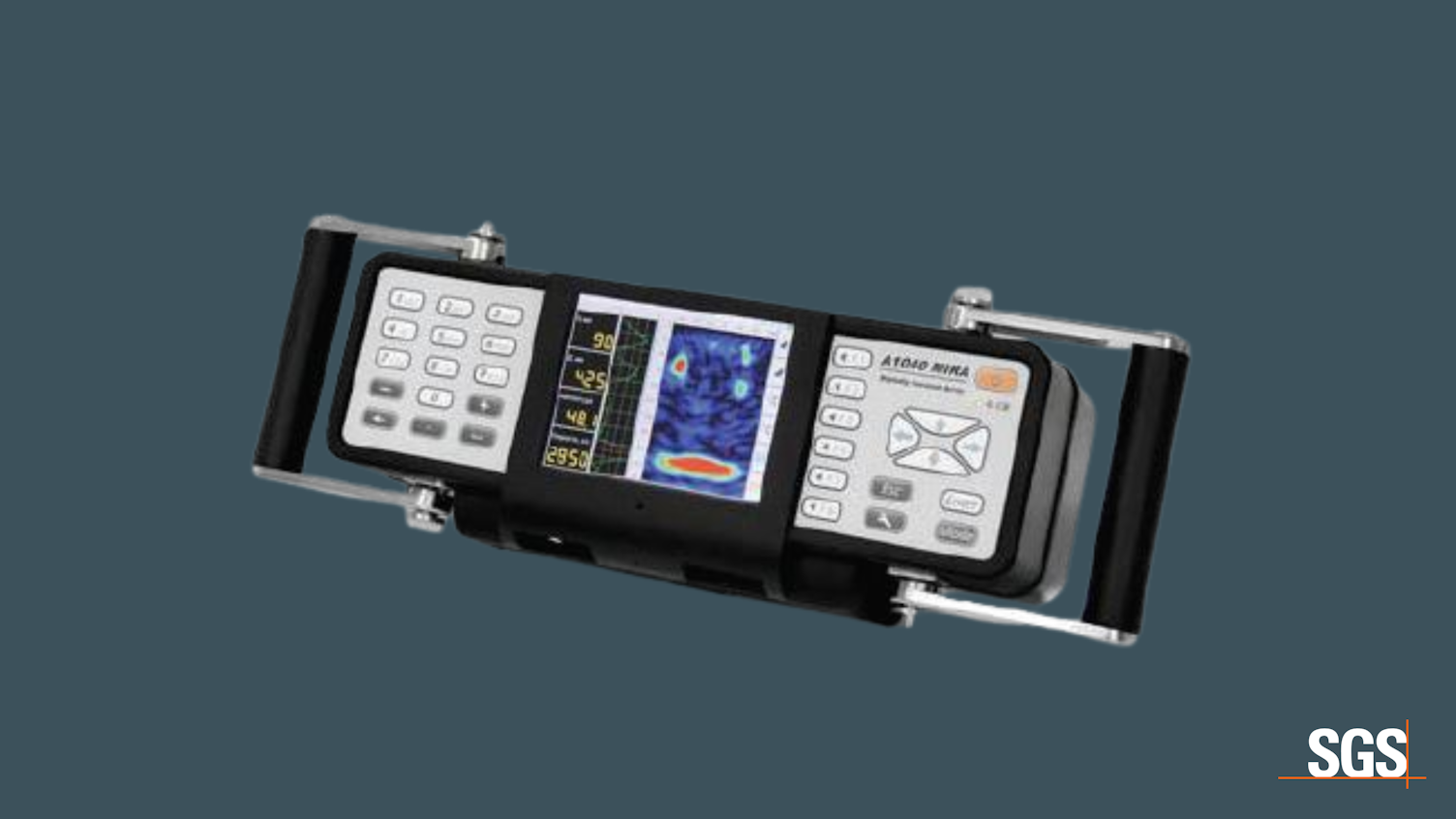

3D Ultrasonic Tomography: Redefining Structural Health Monitoring in Pakistan

Background

Concrete is the world’s most widely used construction material, forming the foundation of modern infrastructure. Despite its durability, the health of concrete structures is often overlooked. Surface cracks and distress are repaired, but the internal integrity, which is equally critical, is rarely assessed.

Internal distresses can develop due to various factors, such as:

• Expansion of corroded rebars which can lead to internal tensile stresses and cracking
• Temperature fluctuations that can cause microcracks
• Structures subjected to excessive or repetitive loads may develop internal fractures, reducing their load-bearing capacity
• Ingress of chlorides, sulfates, or other chemicals that can degrade concrete from within

Assessing the internal health of concrete is essential to prevent hidden defects from escalating into serious structural issues. Advanced technologies like 3D ultrasonic tomography now enable non-destructive evaluation, ensuring safety and longevity.

Applications

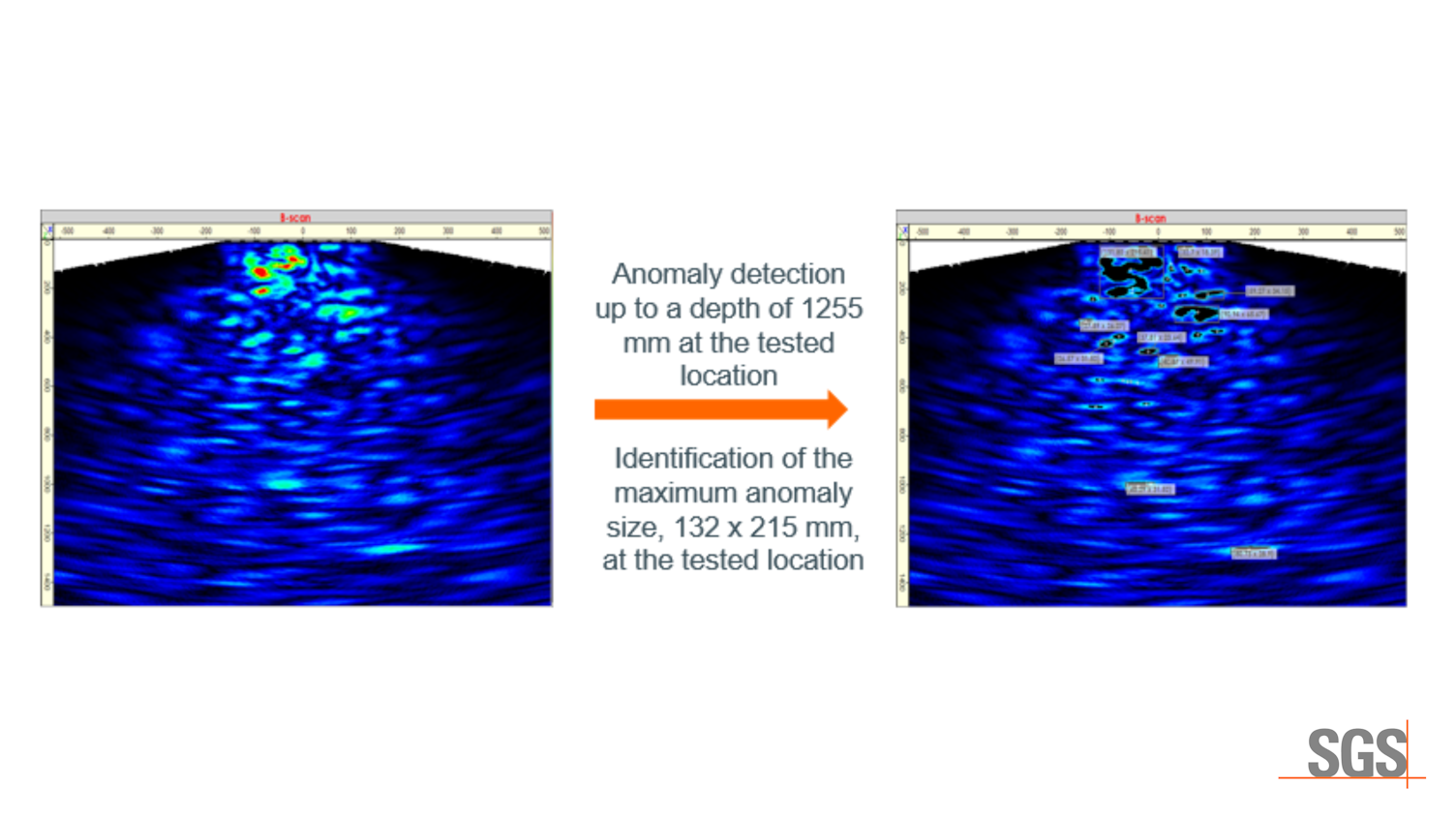

The 3D capability of ultrasonic tomography enables precise detection of subsurface anomalies by providing their depth, coordinates in the x, y, and z dimensions, and their size. This detailed visualization makes it a powerful tool for assessing the internal integrity of concrete structures.  Some of its applications include:

• Identification of cavities, holes, delaminations, insufficient material filling, and internal cracks in both concrete and reinforced concrete objects, as well as in natural stone structures.
• Provide measurements of crack depths, void sizes, and areas of delamination to quantify defects
• Helps in the mapping of rebars
• Guide engineering decisions on whether to repair, retrofit, or replace infrastructure components based on detected anomalies
• Use in periodic monitoring to detect changes in internal structure, helping in predictive maintenance
• Use during construction phases, to verify the integrity of critical components and overall build quality

Conclusion

3D Ultrasonic Tomography has revolutionized the way we assess and monitor the health of concrete structures. By providing detailed insights into the depth, size, and coordinates of internal anomalies, it allows for early detection of issues that may not be visible on the surface. This non-destructive technology plays a crucial role in enhancing the safety, durability, and longevity of infrastructure, whether it's for new construction, aging structures, or heritage preservation. With its ability to detect hidden flaws with precision, ultrasonic tomography is an invaluable tool for proactive maintenance and ensuring the continued integrity of critical civil structures.
